Product & Service - Inspection & Test Equipment

New PT-6 kit with PVRSJ Joystick Videoscope

The new PT6-J41300 kit from USA Borescopes offers a complete and compact videoscope inspection kit for aviation maintenance professionals. The kit comes complete with a 4mm joystick articulating videoscope, rigid sleeve set and PT6 guide tube stored in a heavy-duty storage case. The videoscope offers a 4mm diameter, 1.3 meters of working length, all-way articulation, Tungsten sheathing, image capture, video recording, adjustable LED lighting and rechargeable battery back. The system offers a high-resolution CMOS image sensor with crisp detail and bright color. The videoscope is lightweight and easy to use. The durable storage case provides trouble-free shipping and easy portability.

For more information, send e-mail to Bill@USABorescopes.comor visit www.USABorescopes.com.

Fuelstat

Bioscience sector organization Conidia produces Fuelstat, a rapid, on-site fuel test that detects levels of microbiological contamination and shows whether you have low or high levels of contamination in aviation and diesel fuels. It gives results within 10 minutes.

Fuelstat is an IATA-recommended test for major airlines and affiliated companies to monitor their fuel quality. It can also be used in the marine and fuel forecourt industries.

For more information, visit www.conidia.com.

Helicopter Vibration Control System

Dynamic Solutions Systems Inc. is the developer, manufacturer and single sales point of the MicroVib II helicopter vibration control system. DSS and the MicroVib II system are well documented and supported on the vast majority of the world helicopter fleet. DSS offers product support and training to its customers worldwide.

For more information, visit www.dssmicro.com.

Hawkeye V2 Video Borescopes

Users of Hawkeye V2 video borescopes now have the ability to add notations to the still images and video footage they capture. Using the V2’s new annotation feature, inspection images can now document not only the date of an inspection, but the inspector’s notes as well.

V2 video borescopes are now also shipping with a new LED light source that, in the 4 mm diameter V2, is 1.45 times brighter than its predecessor. The 6 mm V2 now delivers light to the subject that is 2.1 times brighter than before. Hawkeye V2 video borescopes are available in diameters of 4 and 6 mm, offer four-way articulation, and are made in the USA. Optional close focus, and 90-degree prism adaptors are available.

For more information, visit www.gradientlens.com/V2.

Articulating Video Borescopes

RF System Lab offers remote visual inspection and video borescope technology. Makers of the VJ-Advance (VJ-ADV) articulating video borescope, RF System Lab creates video borescopes for commercial, industrial and military applications.

For more information, call (231) 943-1171 or visit www.rfsystemlab.us.

Machida Borescopes

Machida Borescopes offers inspection solutions at all price points.

• Engine manufacturer-approved scopes

• Approved by Pratt & Whitney

• FOD removal kits

• Blending borescopes – bore blending

• UV inspection scopes

• Custom borescopes

• Fast lead times

• Manufactured in the USA

For more information, call (800) 431-5240, send e-mail to info@machidascope.comor visit www.machidascope.com.

ACES SYTEMS’ NEWEST GENERATION OF ANALYZERS

The VIPER II improves upon all current engine monitoring applications with enhanced accuracy and performance. The introduction of the Transient Balance Application has demonstrated a significant improvement in Return on Investment, especially related to fuel expense and labor hours. The VIPER II also has a vibrant new full-color screen that is much larger and presents excellent images by showing high-resolution vibration spectra directly on the analyzer.

For more information, visit www.AcesSystems.com.

Portable videoscope

The 4mm PVRS-J series portable videoscope from Borescopes-R-Us provides high-resolution video images. With the use of a joystick, articulation can be used in all ways to make inspection applications easier. On-board image capture and video recording capabilities are two of the standard features.

For more information, visit www.borescopesrus.com.

Pitot/Static Adapters and Equipment

Cobra Systems is an American manufacturer of pitot/static adapters and associated equipment and serves the commercial, corporate and military aircraft. It is a veteran- and woman-owned business that makes products with a rapid turnaround time. It also sells seal and spacer kits, lubricating fluid, military bags, pitot covers, hose assemblies, streamers and custom accessory kits. Cobra Systems also has the capability to repair and calibrate not only its own equipment, but its competitors as well.

For more information, visit www.cobrasys.com.

Precision Ultra Compact Digital Air Data Test Set

The DMA-AERO MPS43 precision ultra-compact digital air data test set is a unique instrument that integrates precision and performance capabilities into a small enclosure. It enables users to utilize the air data testing characteristics and transport the instrument in ways not possible with more conventionally designed products. It features a rugged, lightweight enclosure.

For more information, send e-mail to dacinfo@dacint.comor visit www.dacint.com.

Digital Protractor

Aircraft Tool Supply manufactures the ATS360 digital protractor. Similar to the PRO360, this new unit offers the same structure and capabilities as the original unit but features a 2.75-inch-wide by 1.5-inch-high LCD screen display that remains upright to view at all angles.

The ATS360 is a measuring tool that provides an immediate, digital reading of all angles in a 360-degree range. This makes it ideally suited to measure aileron deflection, flap movement and propeller pitch.

For more information, visit www.aircraft-tool.com.

Transponder Tester

The IFR6000 is a compact, lightweight and weatherproof unit designed for testing transponder modes A/C/S, 1090 MHz ADS-B and 978 MHz UAT, TCAS I and II, and DME. The IFR 6000 features an easy-to-use interface where every parameter the user commonly needs to view is displayed on screen.

The IFR6000 is the only ramp test set capable of verifying all aspects of next generation transponder testing, including ADS-B testing, FIS-B and TIS-B testing. Most tests can be completed without leaving the main user screens. This simplifies the line technician’s testing task.

For more information, visit www.aeroflex.com.

RVSM AUTOMATED PITOT STATIC TESTER WITH DIGITAL AND TOUCHSCREEN REMOTE

Laversab Inc. introduces two new automated pitot static testers that are designed specifically for small jets and helicopters.

The Model 6200 has been designed for non-RVSM aircraft including helicopters. The Model 6250 is fully RVSM compliant and suits small RVSM jets.

Both testers are used to perform accuracy and leak checks. The accuracy of the pitot output is suited for checks at low airspeeds. Equipped with a large sunlight-readable LCD, a touch screen and a redundant keyboard, these testers are easy to use. The profiles feature allows 20 different test profiles with 50 test points each to be stored in the testers. Both testers can be ordered with an internal eight-hour battery. The wide operating range option allows them to be used in any environment.

For more information, visit www.laversab.com.

BK6000 Digital Borescope

Snap-on Industrial’s BK6000 video/still recording digital borescope records and plays back still images and video clips on a 3.5-inch screen.

Features of the BK6000 include:

• Capturing still images at 740 x 480 resolution

• 2x digital zoom

• 8.5mm diameter imager head fits into tight places

• High-intensity LEDs direct light where it’s needed

• Mini-USB connector for uploading to a computer

• Rubber over mold on all contact/gripping areas

• Stand and hanger to allow user to station device

• Removable, rechargeable Lithium-ion battery pack

• 120v AC plug in

• Two-year warranty

For more information, contact Scott Steward by phone at (561) 212-6404 or by e-mail at scott.b.steward@snapon.com. For general Snap-on Industrial inquires, call (877) 740-1900 or send e-mail to order@snapon.com.

Olympus Industrial Videoscope

Olympus offers the entry-level Series C industrial videoscope designed for inspections of manufactured parts, structures or areas that have limited direct visual access. It offers advanced articulation and high image quality that are standard on Olympus’ portfolio of IPLEX videoscopes. This new instrument delivers still images and videos, is suitable for use in diverse inspection environments, and provides durability with a compact and portable design. The Series C videoscope captures images with the desired brightness by combining eight brightness settings, glare reduction, high-intensity LED and light-sensitive CCD camera chip technologies.

For more information, visit www.olympus-ims.com.

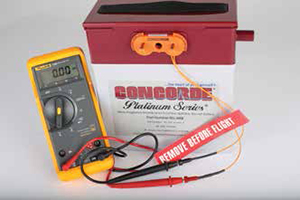

CONCORDE BATTERY PARASITIC LOAD TEST ADAPTOR

Concorde Battery Corporation’s interface adaptor measures parasitic loads. The adaptor fits between the standard MS3509 quick disconnect airframe plug and battery receptacle. The adaptor’s leads are then connected to a digital multimeter (DMM) to measure the amount of parasitic load in milliamperes which are present in most modern aircraft. It makes a series connection to a DMM, avoiding any potential for an inaccurate reading or accidental shorting and arcing between the battery terminals and airframe socket connections. The parasitic load adaptor (P/N 4102) is available through any Concorde Battery distributor.

For more information, visit www.concordebattery.com/accessories.php?id=64.

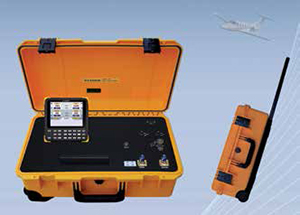

Pitot Static Tester

The ADSE 650 is the latest addition to Ateq’s RVSM-compliant pitot static tester line. The large touch screen display (with on-screen help) enables all checks to be carried out easily on the flight deck or in the cockpit, by a single operator.

The test set is robust and housed in a mobile and weatherproof case. An attached bag contains the pressure hoses and electrical cables.

This test set weighs slightly more than13 pounds and uses a wireless tablet operation.

For more information, call (734) 838-3116, send e-mail to pbrousseau@atequsa.comor visit www.atequsa.com.

Titan Tool Supply TVSG Videoscope

Titan Tool Supply’s TVSG videoscope records video and still images at remote quality control inspections during aviation maintenance. It features 360-degree articulation with greater than 90-degree bending angle. Five light level adjustments are controlled by a mechanical joystick for smooth, accurate control, enabling the camera tip to be steered through narrow openings and complex curves. The TVSG is available in 4.5mm and 6.4mm diameters and 1.5m and 3.0m lengths. Its foam-fitted carrying case includes an AC power cord, AC battery charger, four rechargeable Ni Cad AA batteries, an 8GB SD card and a USB cable.

For more information, visit www.titantoolsupply.com.

Handheld Wireless Aircraft Weighing Systems

Jackson Aircraft Weighing Systems, dba www.aircraftscales.comand www.helicopterscales.com, is in full production of its HH2400 handheld wireless aircraft weighing systems. For the past two years the company has been progressing with its laptop computer wireless systems and is now making available its HH2400 series handhelds. The handheld unit is stand alone, fully wireless and is backward compatible with all its wireless modules.

For more information, contact Larry Jackson by phone at (561) 281-6179 or by e-mail at larryjackson@jawsscales.com.

Cable Tension Meter

Tensitron offers an accurate and rugged upgrade to its aircraft cable tension meter line. Features include data logging for storing numerous entries for later viewing (and an optional serial communication feature can also be purchased for exporting these readings), and a set-point feature showing increasing or decreasing tensions while changing colors. The 10-point custom calibration feature allows for precise calibrations on difficult materials, and the rechargeable battery pack allows for approximately 12 hours of continuous use. Indicate values in Lbs, daN or KG for inch diameter, CWT and metric cables.

For more information, visit www.tensitron.com.

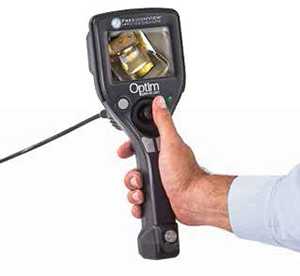

LED Videoscope

Remote visual inspection doesn’t have to be complicated and costly. Experience the compact FreedomView^® LED Videoscope from Optim LLC with its patented, integrated LED light source. The FV Videoscope offers greater flexibility, while providing exceptional light quality and visual clarity so you can perform a wide range of non-intrusive, non-destructive visual inspection tasks virtually anywhere, quickly and easily.

The FV Videoscope offers a durable and intuitive design made for real world conditions with a tungsten insertion shaft, glare reduction touchscreen and easy to use control functions.

For more information, visit www.optim-llc.comor call (800) 225-7486.

Articulating Borescope

The ATS Voyager (ATS-VS22) is a high-resolution recording articulating video borescope designed for non-destructive visual inspection. The Voyager can help document maintenance issues, train mechanics, monitor progressive conditions and provide evidence of work.

The Voyager records onto an SD card and features an articulating tip that swings 240 degrees to reach every inspection point. To ensure a crystal clear image, an extra set of LED lights is included. These lights eliminate any glare or spots. Included in the hard-case package are three mirror tips to examine various angles.

For more information, visit www.aircraft-tool.com.
