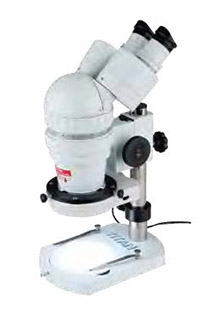

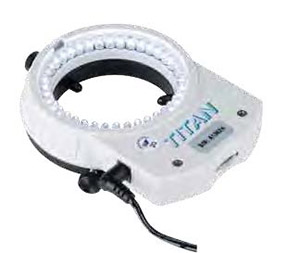

LED Ring Illuminator for Microscopes

A new, low-cost LED ring illuminator from Buffalo, NY-based Titan Tool Supply features a constant-current design to provide powerful, microscope-quality light output with no color shift when dimming. A typical incandescent bulb has a life of 200 hours; the new Titan Tool Model T-30 LED illuminator has a life of approximately 10,000 hours. The T-30 features 40 high-bright LED lights set in a CAD-design, precision-aligned array and includes an integrated controller to adjust brightness from 10 to 100 percent

A universal power source connector with a built-in transformer enables worldwide operation from 100-240vAC 50-60Hz. Additional features include:

• 360-degree, shadow-free illumination

• Three-point, soft-tipped, secure mount to fit lenses from 1.25 to 2.6 inches (32mm to 66mm) in diameter

• 6,500-degree K spectrum (approx.)

• Silent, no-vibration operation

• Measures 1.09 inches thick by 4.08 inches O.D. by 5.3 inches long (28mm x 104mm x 135mm) with optimal working distances from three to six inches (76mm to 152mm)

• Machined aluminum and molded plastic closure for rugged durability

For more information, visit www.TitanToolSupply.com.
